What is linear scale function in machine?

Measure machining position and moving distance

There are several types of linear scale.

1. distinguish from outer form : Open or Enclose Type

2. distinguish from scale value : Incremental or Absolute Type

Which type is common use in machining center?

Enclose Absolute Linear scale

Enclose form will keep settle parts safe away from coolant fluid ,oil and chips.

Absolute value will achieve direct machining position and distance.

Which common brand is common use in Maple-Tech?

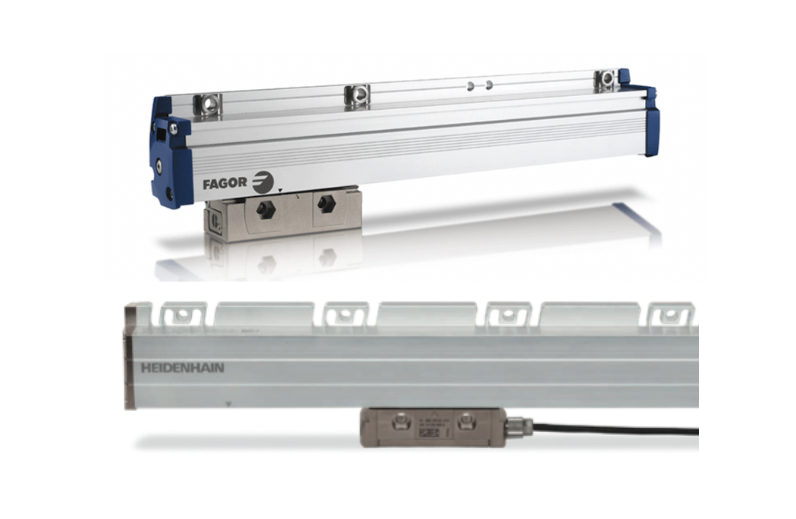

Maple adopts the brand : Fagor made in Spain and Heidenhain made in Germany.

Where does linear scale in machining center?

X-axis : set on the front side of worktable

Y-axis : set on machine base

Z-axis : set on machine stance

How does linear scale works?

Use the optical principle to measure the beam reflection to determine the position to achieve high-precision positioning and measurement.
