#Heavyduty

Extra wide base and column for extra stability and rigidity.

Spindle Taper BT40/10000rpm or upgrade to BT50/6000rpm

#Accuracy

HIWIN /PMI -C3-class Ball screw and

HIWIN /PMI -P-class 45mm Roller Type Linear Guideway

High Feed Rate 24/24/24 or upgrade to 36/36/24 m/min

# Rigidity

Cast Iron Meet Meehanite Standard : HT300

Designed with FEM analysis is able to test many stressed conditions.

Y axis has 3 linear guideway to support the saddle and worktable.

#Capacity

High-speed ATC : 24 tools Disk type or upgrade to 40 tools Chain Type

4 Way Swivel Operation Panel : Convenient for user operation

Controller Type : Mitsubishi ,Fanuc ,Siemens and HDH

This is rear side of ME-1270 , you could see the separate electric cabinets.

Why does Maple separate High & Low Voltage Electric Cabinets?

It is able to reduce heat and noise and avoid affecting by separating all high voltage from low voltage parts.

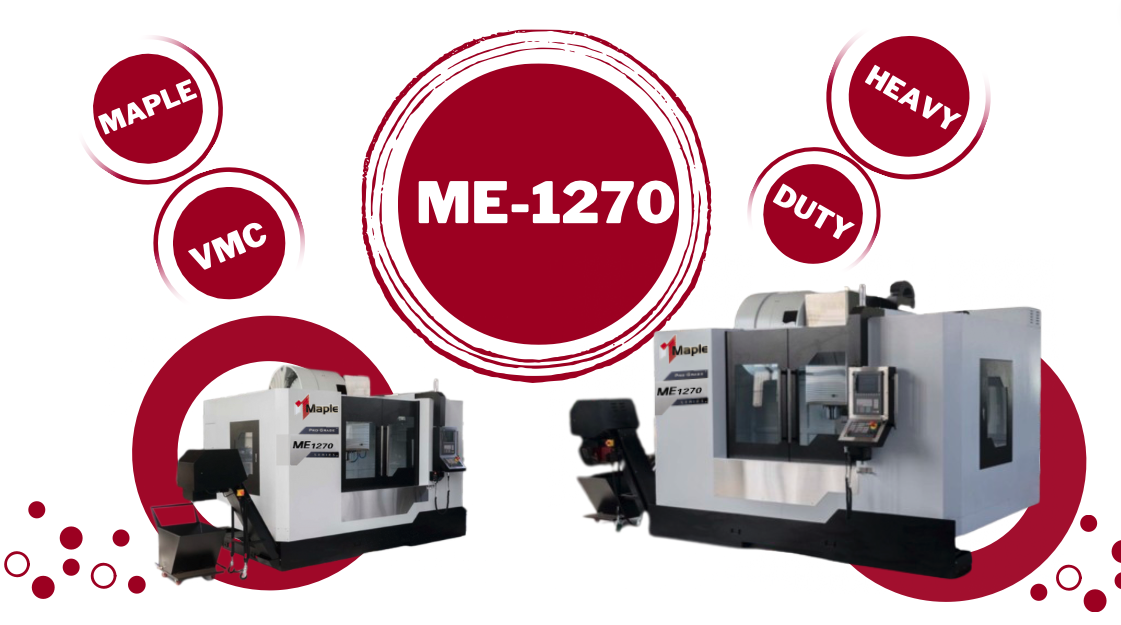

ME-1270 could do tasks from light to heavy-cutting.

This is a multi-talented Vertical Machining Center Model.

Also is your clever solution for whatever machining challenge.

If you would like to know more of this machine model , contact with Maple.
